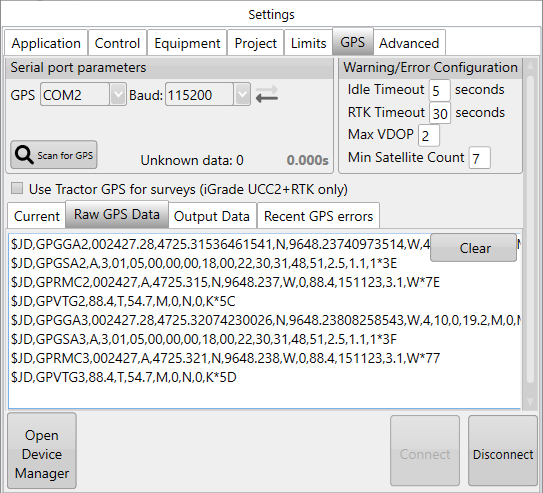

GPS - Displays the COM port that is used to communicate with the GPS. Ensure you have selected the correct port with the drop down menu.
Baud (Rate) - The communication speed between the software and GPS (it should match the baud rate of the GPS).
Scan for GPS - Checks the available COM ports and usual baud rates for valid GPS data.
Warning/Error Configuration - Settings changed on this page will stay even after the system is turned off.
Current - Displays the most recent GPS information received in a table.
Raw GPS data - Displays the most recent GPS data received. Primarily used for diagnostics, should support be required.
Output Data - Displays the most recent outgoing communications. Primarily used for diagnostics, should support be required.
Recent GPS errors - A list of the most recent GPS errors, for review in case they are intermittent.
Open Device Manager - Used to investigate COM port issues if required.
Connect and Disconnect - Manually start or stop communication with the app controller.
NOTE: T3RRA software and iGrade™ must have identical Com port and Baud Rate settings in order to communicate.
