Offset Design

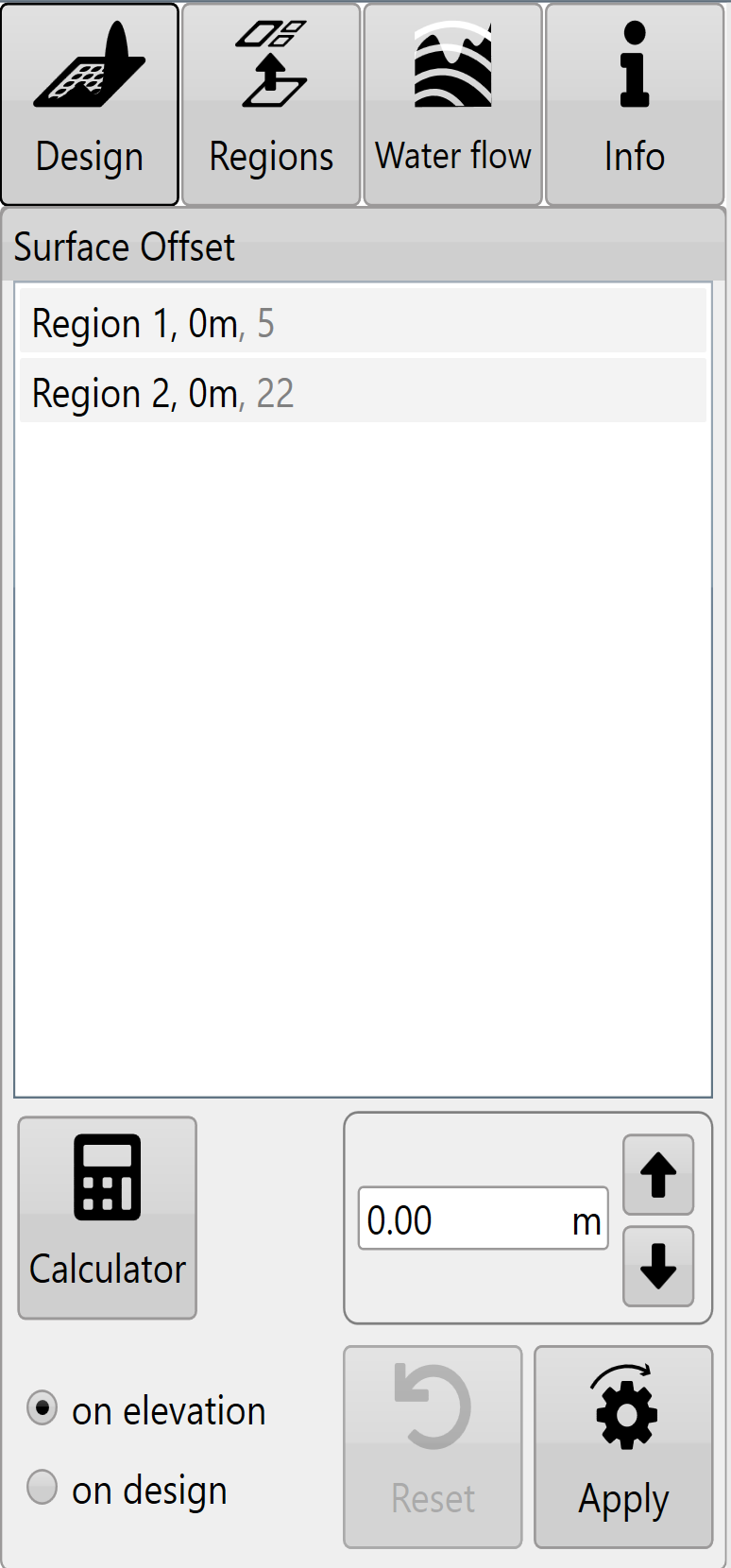

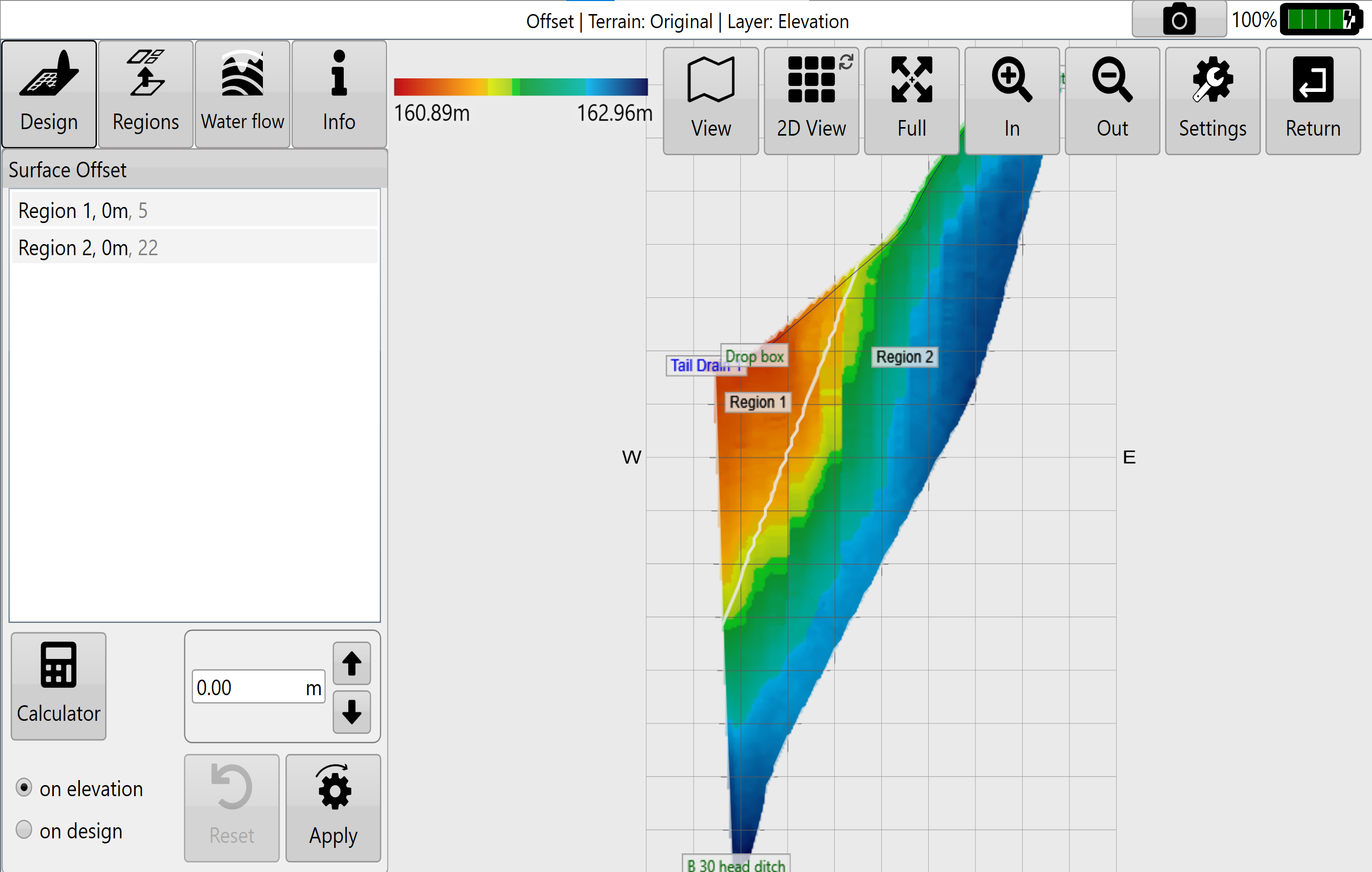

 Select the 'Offset' button to raise or lower the surface height of a field or  region. This can help with:

• Importing and exporting dirt

• Addition or removal of topsoil

• Raising pads

You can either:

• Manually enter the desired offset amount (This can also be adjusted in set increments using the arrow buttons).

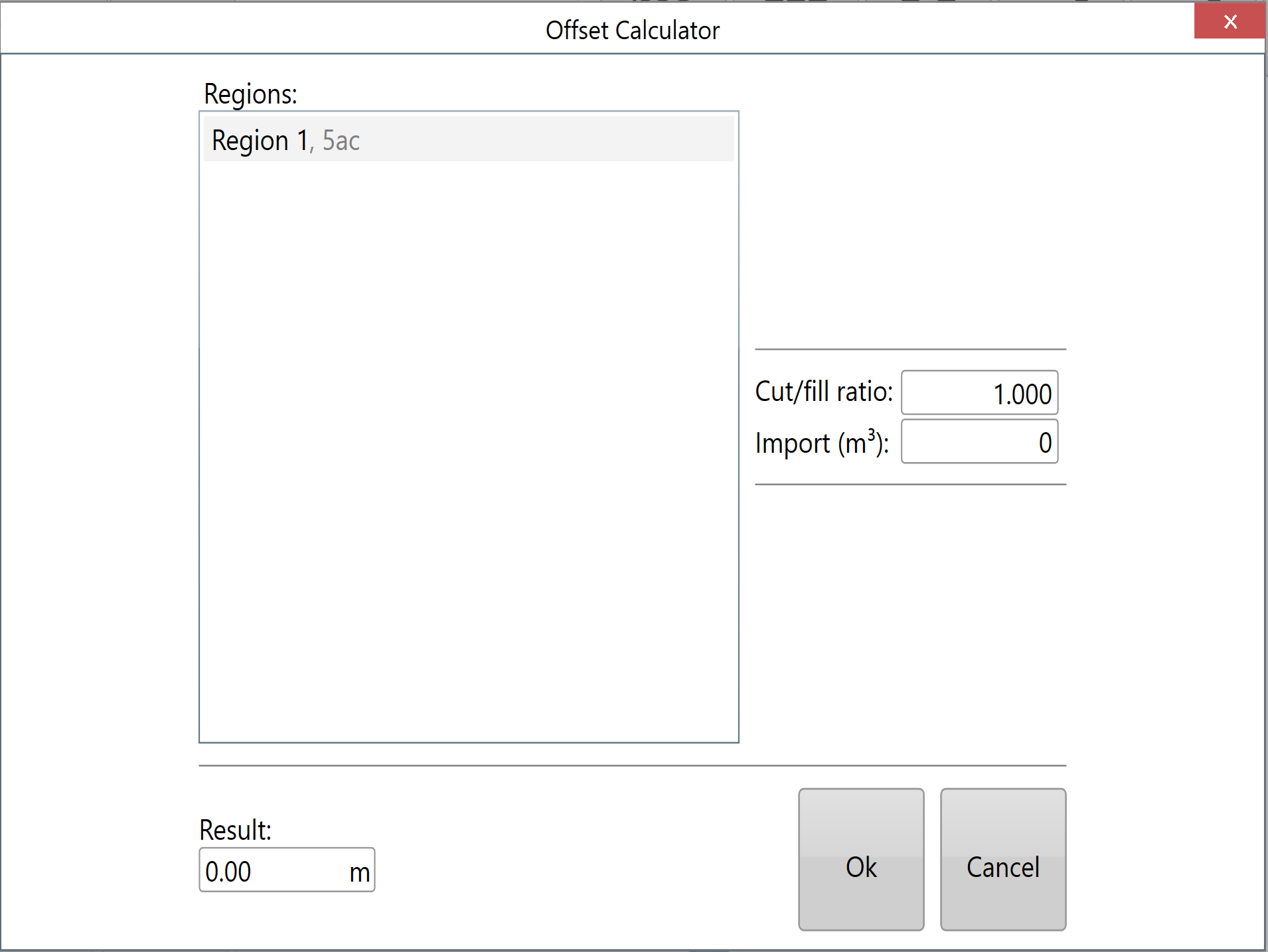

• Use the calculator to adjust the offset amount. The calculator is useful if you want to offset the surface by a certain volume of imported or exported dirt.

Negative import values are considered exports.

Press 'Apply' (shown as the offset design icon) after parameters are entered.

Once you are happy with the design follow the steps in the 'completing your design' section.
