Drain Design error message ‘drains were affected by this operation’

Symptoms:

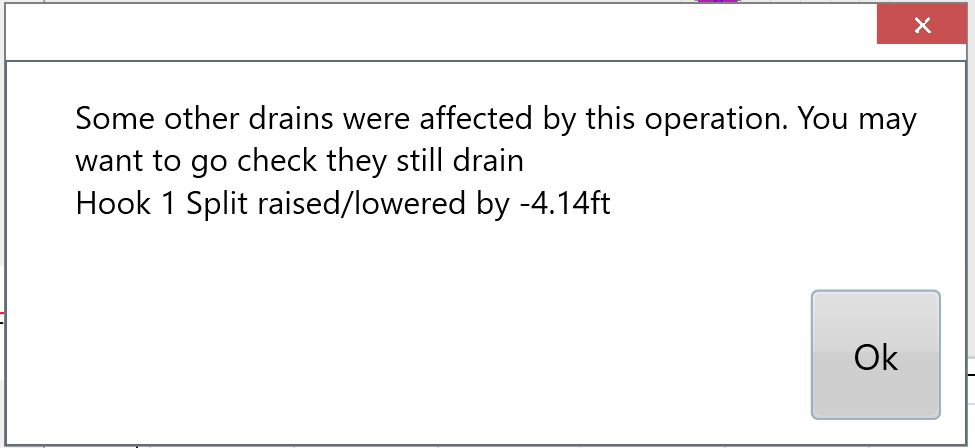

When designing a drain, you receive an error message:

Cause:

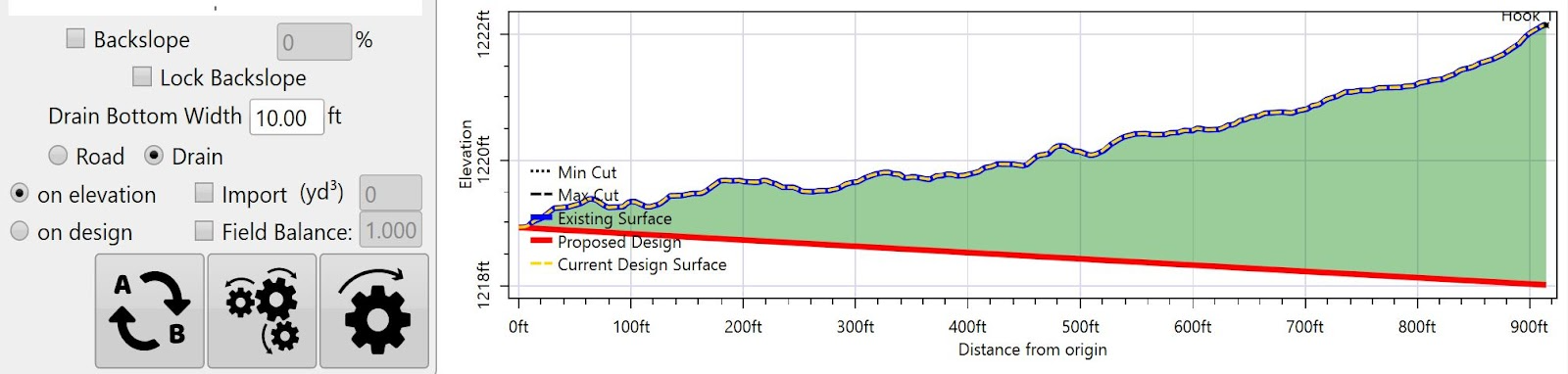

1. Elevation data was collected from low to high elevation where another drain connects.
2. Drain was split with the Split Drain tool.

Solutions:

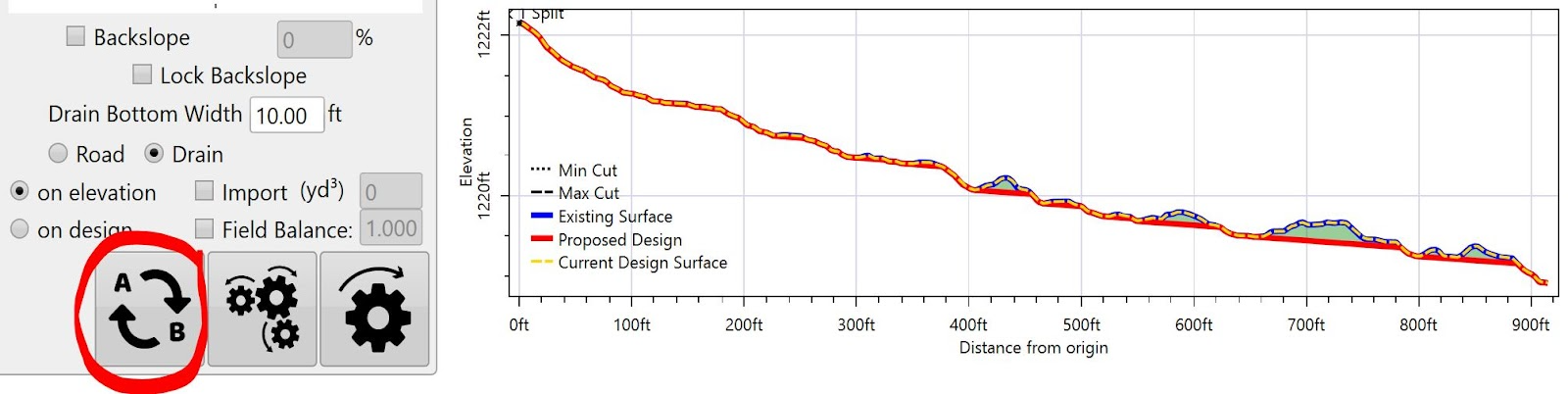

Swap AB before designing so the drain is designed from high to low elevation.
